Controls up to 8 DisplayPort-enabled laptop or notebook computers using one centralized DisplayPort monitor and USB keyboard/mouse.

  • Supports true 4K resolutions up to 4096 x 2160 @ 60 Hz with HD audio
  • Cascade up to 2 levels to control as many as 128 computers from a single console
  • Built-in 2-port USB 3.1 hub lets you share USB peripherals among connected computers
  • Pushbuttons, hotkeys and on-screen display allow easy toggling between computers
  • Firmware-upgradable KVM works with Windows, Mac, Sun and Linux operating systems
  • 1-year limited warranty


Connects 8 DisplayPort Devices to a Single DisplayPort Monitor, Keyboard and Mouse
This rack-mount KVM switch lets you access, control, boot and reboot up to eight computers or other devices with DisplayPort connectors at the same time. In addition to desktop and notebook computers, the KVM also connects up to eight media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All eight computers share one DisplayPort and/or HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Connect up to 128 Computers to One Original Console
You can also cascade two levels of B024-DPU08 KVM switches, allowing centralized access to as many as 128 computers using a single monitor, keyboard and mouse.

Switching Between Computers Is Fast and Easy
Use the front-panel pushbuttons, RS-232 commands, hotkeys or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup
Connect your DisplayPort and/or HDMI monitor, keyboard, mouse, and (optional) speakers to the KVM’s console ports. Then, use the included DisplayPort and USB cables to connect your computers to the KVM. The plug-and-play B024-DPU08 requires no software, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS, Sun and Linux.

USB Hub Lets You Share Peripherals between Computers
The built-in dual-port USB 3.1 Gen 1 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with earlier USB generations. LEDs indicate which computer is using the connected USB device.

Transmits Crystal-Clear 4K Video and High-Definition Audio
The B024-DPU08 supports true 4K video (4096 x 2160) at 60 Hz and 2.1-channel surround sound with full bass response. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

Stack Units to Expand Your Workstation and Enhance Your Productivity
Stack as many as eight B024-DPU08 KVM switches on a level surface to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.

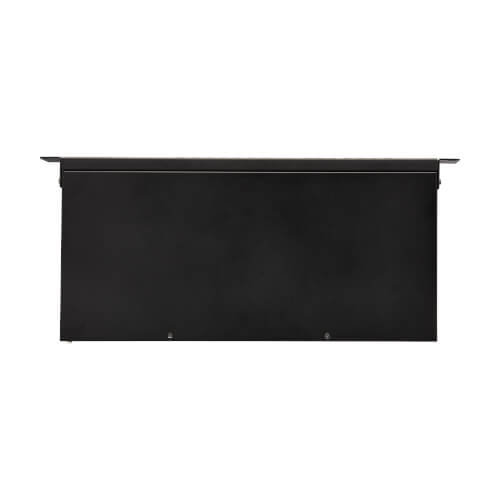

Designed for Convenient Mounting with Included Hardware
The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply comes with a detachable C13-to-C14 cord.

System Requirements

  • Console with DisplayPort and/or HDMI monitor, USB keyboard/mouse and (optional) speakers with 3.5 mm connectors
  • Computer with DisplayPort, USB-A and (optional) 3.5 mm audio ports
  • Windows, macOS, Sun or Linux operating system

Package Includes

  • B024-DPU08 8-Port DisplayPort/USB KVM Switch
  • (2) DisplayPort 1.4 cables, 5 ft. (1.5 m)
  • (2) USB 3.0 A-to-B cables, 6 ft. (1.8 m)
  • (2) 3.5 mm audio cables, 6 ft.
  • Firmware upgrade cable, 6 ft.
  • External power supply (Input: 100–240V, 50/60 Hz; Output: 12V 3.3A) with detachable C13-to-C14 cord, 4 ft. (1.2 m)
  • (4) Rubber feet
  • Rack-mounting hardware
  • Quick Start Guide
TAA compliant RoHS compliant


UPC Code037332263728
Max CPU8
TechnologyDisplayPort; Stereo Audio; USB 2.0 (High Speed)
Number of Monitors Supported1
Max Supported Video Resolution4K @ 60Hz (4096 x 2160)
Max Number of Ports (Entire Chain)128
Extended ModeNo
Mirror ModeNo
Audio SpecificationStereo
AC Power Adapter Plug(s)IEC-320-C14
AC Power Adapter Input Specs (V / Hz / A)100-240V / 50/60Hz / 1.2A
AC Power Adapter Output Specs (V / A)12V / 3.33A
AC Power Adapter Cord Length (ft.)3.93
AC Power Adapter Cord Length (m)1.2
Power Source TypeAC Adapter with detachable power cord
DC Barrel PlugOD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)18.44
Number of Ports8
Computer/Server PortsDP, USB, 3.5mm Audio Jack (Audio)
Daisy-Chain PortNo
Firmware Upgrade PortYes
PC/Server ConnectionsDisplayPort
Side A - Connector 1DISPLAYPORT (FEMALE)
Side A - Connector 2(2) USB A (FEMALE)
Side A - Connector 33.5MM (FEMALE)
Side B - Connector 1(8) DISPLAYPORT (FEMALE)
Side B - Connector 2(8) USB B (FEMALE)
Side B - Connector 3(8) 3.5MM (FEMALE)
Computer Keyboard and Mouse InterfaceUSB
Computer Monitor InterfaceDisplayport
Console Keyboard and Mouse InterfaceUSB
Console Monitor InterfaceDisplayport
Connector PlatingNickel
LED IndicatorsOrange (x8) - On Line/Selected Port, Green (x1) - Power, Green (x8) - USB Link
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)5.24 x 19.65 x 12.76
Shipping Weight (lbs.)10.56
Unit Dimensions (hwd / in.)17.020 x 8.440 x 1.730
Unit Packaging TypeBox
Unit Weight (lbs.)6.85
Operating Temperature Range32° to 104°F (0° to 40°C)
Storage Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity0% to 80% RH, Non-Condensing
Operating Temperature32° to 104°F (0° to 40°C)
BTUs  136
Port ControlPush Buttons, Hotkeys, OSD
IP Remote Access  No
Daisy-chainable or CascadableCascadable
NIAP-Certified Secure  No
Number of Users1
On-Screen Display (OSD)Yes
Port SelectionHotkey; OSD; Pushbutton; Remote Selector
Displayport Specification1.2
HDCP Specification2.2
Driver RequiredNo
External Power Supply CertificationsCCC; CE; FCC; GS; PSE; RoHS; TUV; UL; WEEE; cUL
Product CertificationsNOM (Mexico)
Product ComplianceRoHS; CE (Europe); REACH; WEEE; FCC (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)1-year limited warranty
