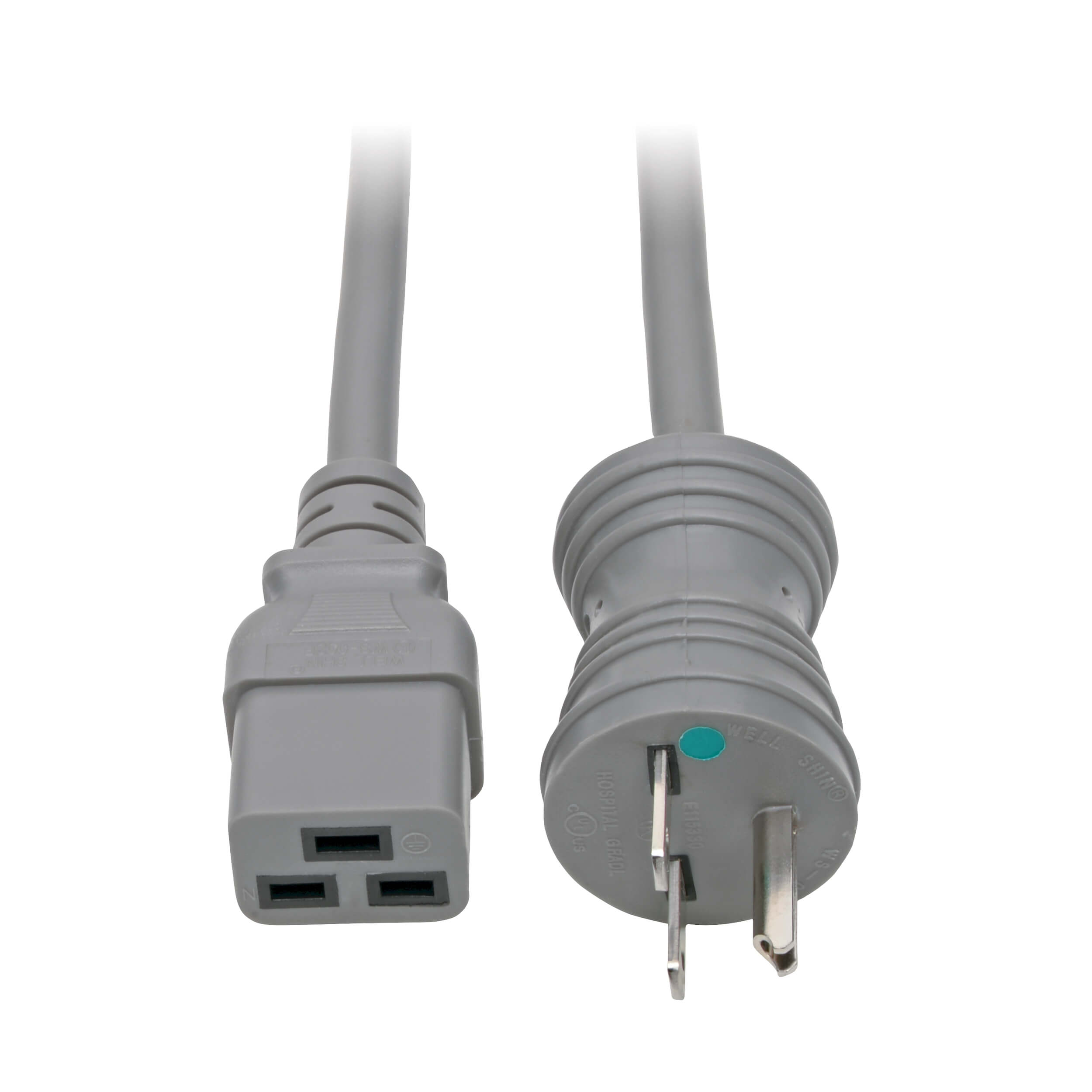

Hospital-Grade Power Cord, NEMA 6-15P to C19 - Heavy-Duty, Green Dot, 15A, 250V, 14 AWG, 6 ft. (1.83 m), Gray

Part Number:  P033-006-GY-HG

Connects a server, transformer, or other high-current medical device with a C20 power inlet to a grounded 6-15R hospital-grade outlet.
  • Recommended for connecting devices to power outlets outside patient-care vicinities
  • 6-ft. (1.83 m) length allows flexibility in placing devices in relationship to AC outlet
  • Hospital-grade power cord replaces or upgrades power cord provided by manufacturer
  • Thick 14 AWG wire gauge manages high power levels required for larger equipment
  • Color-coded gray for fast, easy identification in a crowded PDU, UPS or surge protector
$47.48 Avg. Price
Have a Question?
Contact Us

Features

Hospital-Grade Power Cord is a Safe Solution for Medical Facilities
This hospital-grade cord features 14 AWG wire suitable for high power connections, making it a reliable solution for devices that require a higher-rated, heavier-gauge cable. The C19 end connects to a server, isolation transformer, power strip or other compatible hospital component. The NEMA 6-15P-HG green-dot plug connects to a hospital-grade AC power source located outside patient-care vicinities. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.
Designed and Tested to Strict Hospital-Grade Standards
This hospital power cord is tested to ANSI/UL 62 and 817 standards, as well as CAN/CSA C22.2 no. 21 and 49 standards, ensuring it's a dependable power solution for hospital environments.
Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This hospital-grade power cord features a gray SJT jacket and fully molded gray ends. The color-coding allows easy, fast identification in a crowded surge protector and helps prevent the cable from becoming inadvertently disconnected.

Package Includes

  • P033-006-GY-HG Hospital-Grade Power Cord, NEMA 6-15P to C19, 6-ft. (1.83 m), Gray
RoHS compliant

Specifications

OVERVIEW
UPC Code037332224927
Device CompatibilityMobile Cart; Computer; Printer; Monitor/HDTV; Server; UPS; PDU
Country/RegionGlobal
INPUT
Maximum Input Amps15
Voltage Compatibility (VAC)100-250
PHYSICAL
Plug ColorGray
Cable Jacket ColorGray
Cable Jacket MaterialPVC
Cable Jacket RatingVW-1
Power Cord Jacket TypeSJT
Cable Outer Diameter (OD)9.2mm
Number of Conductors3
Wire Gauge (AWG)14
Cable Length (ft.)6
Shipping Dimensions (hwd / in.)1.00 x 9.00 x 13.00
Shipping Weight (lbs.)0.80
ENVIRONMENTAL
Operating Temperature Range-4 to 221 F (-20 to 105 C)
Storage Temperature Range-4 to 221 F (-20 to 105 C)
Operating Humidity Range0-65% RH
Storage Humidity Range0-65% RH
CONNECTIONS
Side A - Connector 1NEMA 6-15P-HG
Side B - Connector 1IEC-320-C19
FEATURES & SPECIFICATIONS
High VoltageYes
Locking PlugNo
STANDARDS & COMPLIANCE
Product CertificationsCSA (Canada); cUL Listed; UL Listed
Product ComplianceRoHS; REACH
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)Lifetime limited warranty
