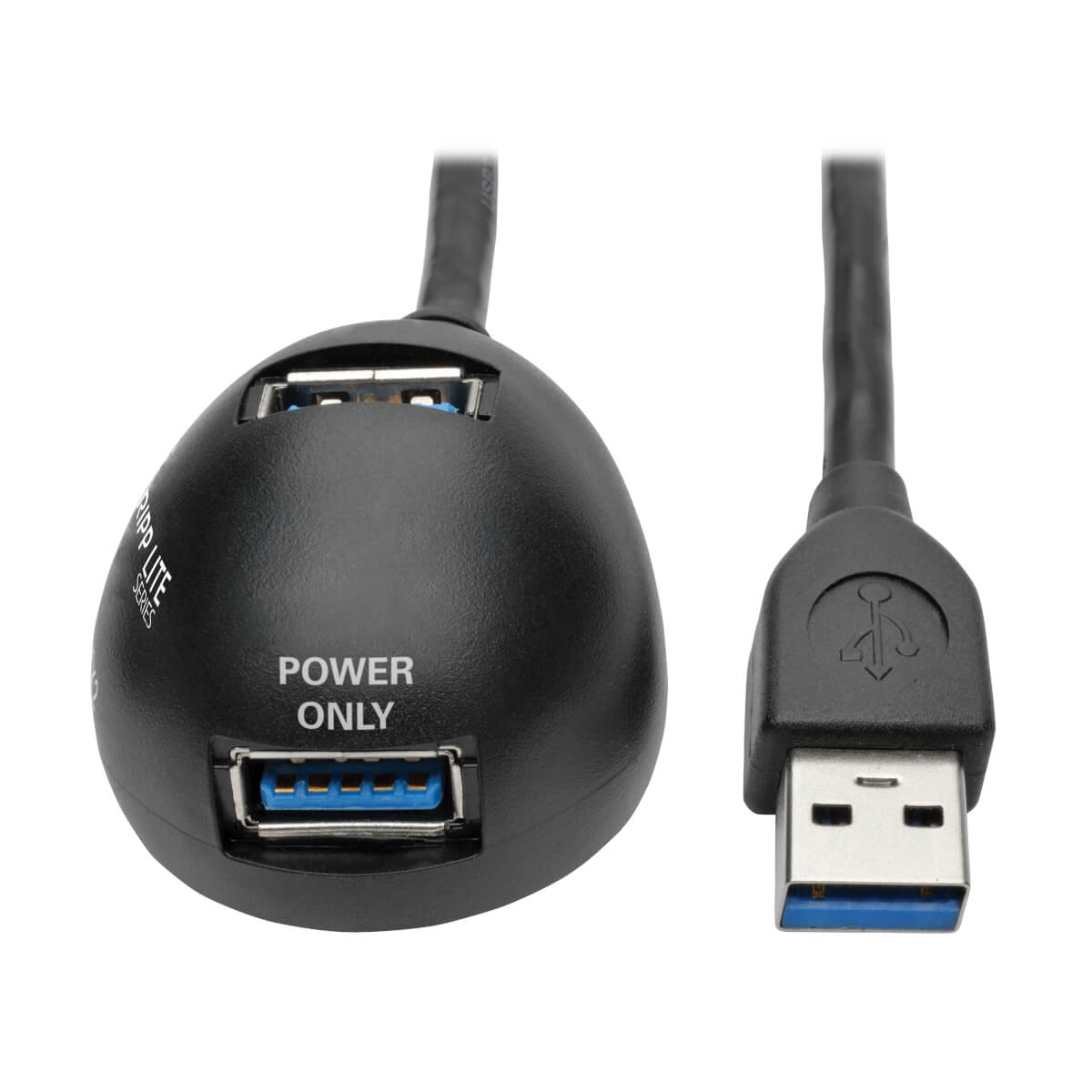

Converts your computer’s USB 3.0 port to 2 USB 3.0 ports and extends them up to 6 ft away. Ideal for connecting thumb drives, digital cameras and other USB-A devices.

  • Supports data transfer rates up to 5 Gbps
  • Bi-directional interface allows data to flow both directions
  • Backward compatible with previous USB generations
  • Features one USB 3.0 data/power port and one power-only port
  • Double-shielded protection against EMI/RFI line noise
  • Black padded non-sliding base

Features

Expands an Existing USB 3.0 Port to 2 Ports and Extends Them an Extra 6 ft.
  • Move a hard-to-reach USB port within easy access
  • Ideal for connecting external hard drives, thumb drives, digital cameras and other USB-A devices
  • Features one USB 3.0 data/power port and one power-only port

Enjoy SuperSpeed Transfer Rates in High-End Applications
  • Supports data transfer rates up to 5 Gbps—10x the speed of USB 2.0
  • Bi-directional interface allows data to flow both directions at the same time, increasing theoretical bandwidth by 10x
  • Backward compatible with earlier USB generations

First-Rate Construction for Superior Signal Transfer
  • Premium foil and braid shielding blocks EMI/RFI interference
  • Molded nickel-plated connectors ensure excellent connectivity
  • Integral strain relief for cable and connectors’ long life
  • Twisted 28/24 AWG data/power lines
  • Flexible PVC jacket easy to install in tight spaces
  • Black padded non-sliding base

System Requirements

  • Computer, laptop or other device with USB 3.0 port (to achieve USB 3.0 speeds)

Package Includes

  • U324-006-DSK2 2-Port USB 3.0 SuperSpeed Desktop Extension Cable (M/2xF), 6 ft.
RoHS compliant

Specifications

OVERVIEW
UPC Code037332199478
TechnologyUSB 3.x
Cable Type  Passive
INPUT
Maximum Input Amps2
CONNECTIONS
Side A - Connector 1USB A (MALE)
Side B - Connector 1(2) USB A (FEMALE)
Connector PlatingNickel
Contact Plating  Gold
Connector StyleStraight
CHARGING
Total Charging Watts10
PHYSICAL
Material of ConstructionPVC
Cable Jacket ColorBlack
Cable Jacket MaterialPVC
Cable Jacket RatingVW-1
Cable Outer Diameter (OD)5.5mm
Cable Length (ft.)6
Shipping Dimensions (hwd / in.)5.31 x 3.94 x 0.50
Shipping Weight (lbs.)0.24
Unit Packaging TypePolybag
ENVIRONMENTAL
Operating Temperature Range32° to 104°F (0° to 40°C)
Storage Temperature Range14° to 131°F (-10° to 55°C)
Relative Humidity5% to 90% RH, Non-Condensing
Operating Humidity Range0% to 90% RH, Non-Condensing
Storage Humidity Range0% to 90% RH, Non-Condensing
Power Provided to Connected Device(s)10W (5V/2A)
FEATURES & SPECIFICATIONS
Over Current Protection  Yes
USB SpecificationUSB 3.2 Gen 1 (up to 5 Gbps)
Data Transfer Rate5 Gbps
STANDARDS & COMPLIANCE
Product ComplianceRoHS; CE (Europe); REACH; FCC (USA); UKCA
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)Lifetime limited warranty
