9U Air Inlet Duct Kit - Nexus 7000-Series Switches and Tripp Lite Wide Racks

Part Number:  SRDUCTN7009

Pulls cool air from the front of the rack and directs it to your Cisco Nexus 7000-Series switch or other equipment requiring concentrated ducting.
  • Designed to keep your Cisco Nexus 7000-Series network switch cool
  • 9U duct kit forces cool air toward switch’s rear exhaust for better airflow
  • Features 2 tray ducts (top and bottom) and side inlet and exhaust box ducts
  • Includes all necessary mounting hardware for efficient, immediate installation
  • Designed to mount into extra-wide 750 mm Tripp Lite SmartRack® racks
  • 5-year limited warranty
Have a Question?
Contact Us

Features

Improves Your Cisco Nexus 7000-Series Switch’s Performance by Keeping It Cool
This SmartRack rack-mount ducting kit pulls cool air from the front of the rack and directs it toward the rear exhaust of your Cisco Nexus switch. Dual tray ducts direct cool airflow on the top and bottom of the switch, and two boxes direct airflow to the sides. The side boxes create a concentrated exhaust pathway to prevent warm air from recirculating back to the rack’s cold-aisle side. This extra airflow keeps your switch cool to ensure it maintains peak performance.
Easy to Install Efficiently with Included Hardware
The SRDUCTN7009 is designed for extra-wide 750-millimeter Tripp Lite racks, including SRW6UDPVRT and SRW9UDPVRT, and does not fit standard-width racks. All necessary mounting hardware is included for hassle-free setup that saves you time and money on installation. The 9U unit is designed specifically to accept Cisco Nexus 7000 switches, but its modular and spacious design can also house other equipment that requires concentrated ducting.

System Requirements

  • Specifically geared for Cisco Nexus 7000 Series switches
  • Mounts into extra-wide 750 mm Tripp Lite racks
  • Does not fit standard-width SmartRack racks

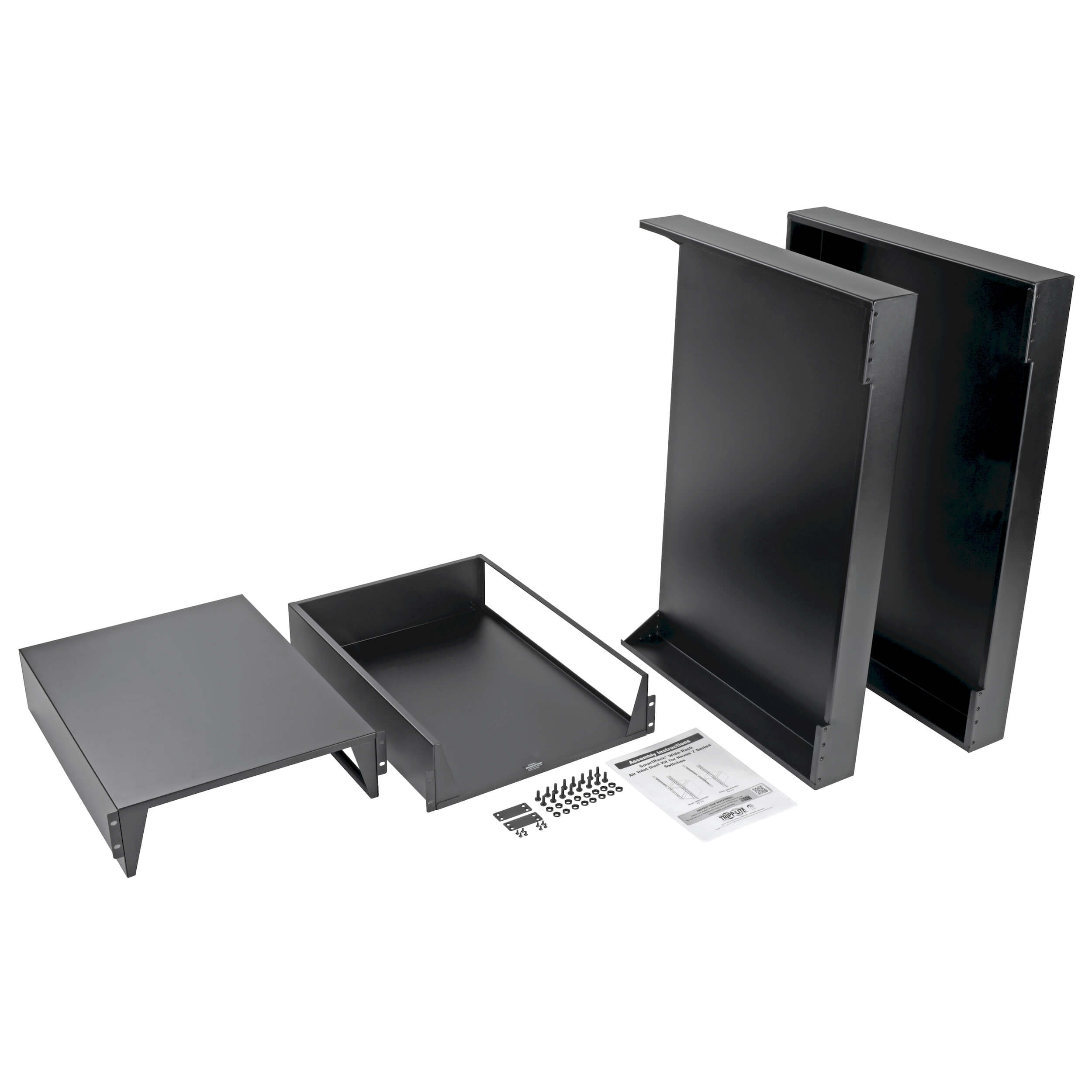

Package Includes

  • Inlet box
  • Exhaust box
  • Top tray
  • Bottom tray
  • (16) M6 x 16 screws
  • (16) M6 cup washers
  • (7) M4 screws
  • (2) Rear plates
  • Assembly instructions
RoHS compliant

Specifications

OVERVIEW
UPC Code037332196439
Accessory TypeDuct Kit
Accessory ClassCooling Accessories
COOLING
Cooling TypePassive
PHYSICAL
Shipping Dimensions (hwd / in.)26.57 x 10.43 x 37.40
Shipping Weight (lbs.)80.00
STANDARDS & COMPLIANCE
Product ComplianceRoHS; EIA/ECA-310-E; REACH
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)5-year limited warranty
