  • Extends the runtime of expandable 192V DC UPS Systems
  • Included daisychain connector supports the addition of multiple compatible external battery packs
  • Supports 3U rack-mount installation; 4-post installation accessories included
  • Options for 2-post rack-mount and tower installation available
  • 2-year limited warranty

Overview

The BP192V12-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible UPS systems. Multi-use form factor supports configuration in rack-mount or stacking applications using only 3U. Upright tower configuration supported with optional 2-9USTAND accessory. Includes heavy-gauge cabling with high-current DC connectors for simple installation. Additional output connector allows multiple BP192V12-3U battery packs to be daisy-chained to the UPS for even longer extended run operation.
COMPATIBLE UPS SYSTEMS - SU12KRT4UHW, SU5000RT4U, SU5000RT4UHV, SU5000RT4UTF, SU6000RT4U, SU6000RT4UHV, SU6000RT4UHVG, SU6000RT4UHVHW, SU6000RT4UTF, SU6000RT4UTFHW, SU8000RT4U and other UPS systems that specify the use of this battery pack.

Features

  • Offers extended-run UPS operation when used in conjunction with compatible UPS systems
  • Supports stacking or rack-mount installation using only 3 rack spaces (3U)
  • Supports upright tower installation with optional 2-9USTAND accessory (holds 3 battery packs in tower configuration)
  • Set of two input/output connectors allows multiple BP192V12-3U battery packs to be daisy-chained to the UPS for even longer extended run operation
  • Includes heavy-gauge cabling with high-current DC connectors for simple installation

Package Includes

  • BP192V12-3U external battery pack
  • Mounting hardware
  • Warranty information
  • Instruction manual
RoHS compliant

Specifications

OVERVIEW
UPC Code037332125903
INPUT
Input PhaseSingle-Phase
UPS Input Cord Length (ft.)3
OUTPUT
Overload Protection50A DC output fuse
BATTERY
Expandable RuntimeYes
DC System Voltage (VDC)192

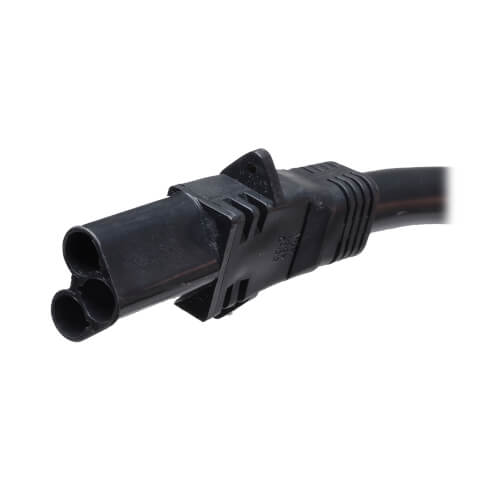

UPS ConnectionDetachable cable with UPS specific DC connector (90 cm length, 8 gauge)
Typical Battery Lifespan4-6 years typical (North America)
PHYSICAL
Material of ConstructionSteel
Rack Height  3U
External Battery Pack Form FactorRack/Tower
Installation Form Factors Supported with Included Accessories4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
Minimum Required Rack Depth (inches)31
Shipping Dimensions (hwd / in.)11.00 x 23.00 x 33.00
Shipping Weight (lbs.)200.00
Unit Dimensions (hwd / in.)5.250 x 17.500 x 28.000
Unit Weight (lbs.)174.00
STANDARDS & COMPLIANCE
Product ComplianceRoHS; CE (Europe)
WARRANTY & SUPPORT
Product Warranty Period (U.S. & Canada)2-year limited warranty
Optional Coverage3 year, 5 year, next day and on-site warranty coverage available
