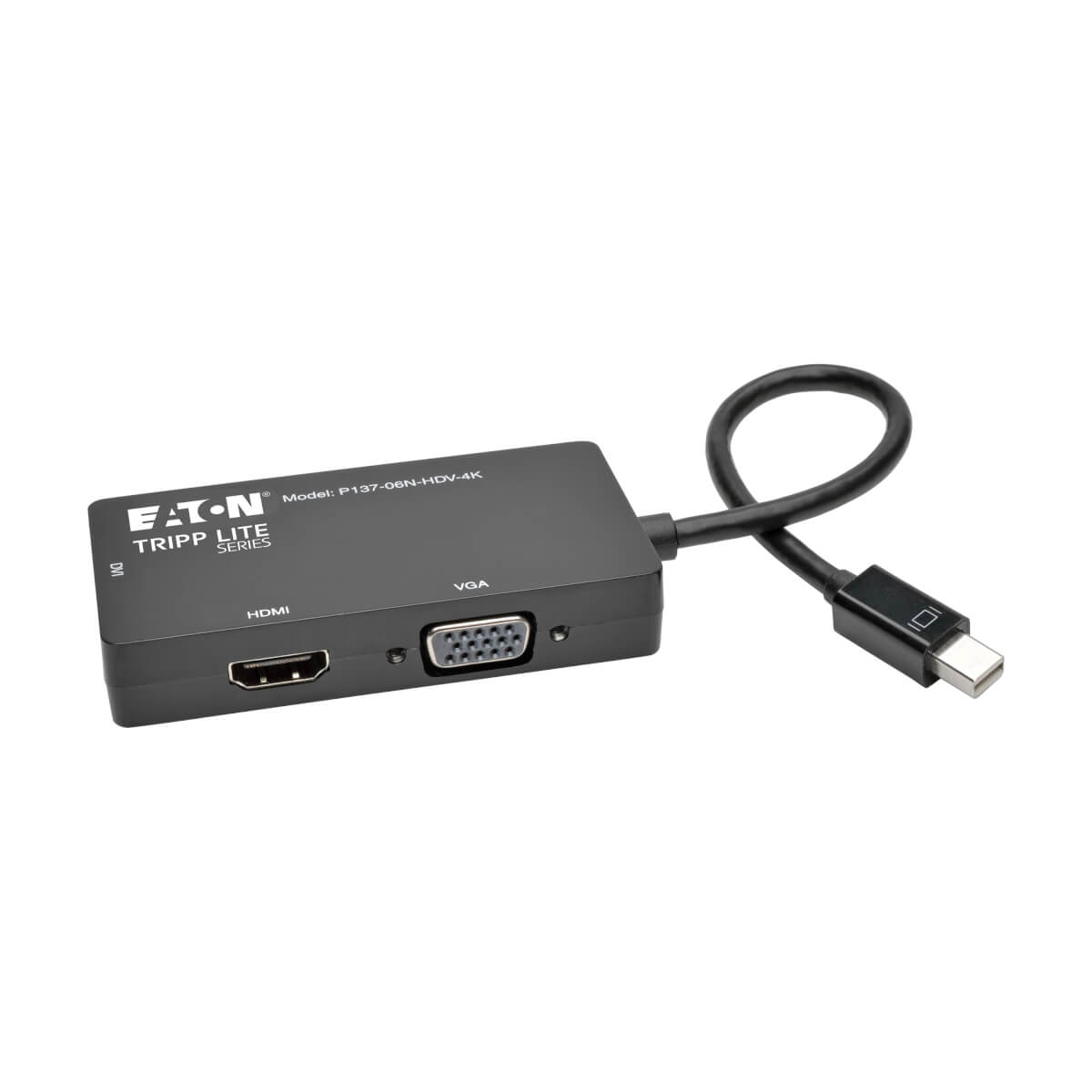

All-in-one converter/adapter connects your Mini DisplayPort-enabled laptop or tablet to a VGA, DVI or HDMI display without the need to carry separate adapters. Ideal for trade shows, classrooms and lecture halls.

  • Separate DVI, HD15 and HDMI female connectors
  • HDMI port supports UHD 4K x 2K @ 24/30 Hz video resolutions
  • Passive adapter requires connected computer to have DP++ port
  • Plug and play—no software, drivers or power supply needed
  • Small size for easy carrying in laptop bag or briefcase
  • 3-year limited warranty

Features

Connects Your Mini DisplayPort Laptop or Tablet to a VGA, DVI or HDMI Display
  • Recommended for trade shows, classrooms, lecture halls and other presentations
  • DVI port supports video resolutions up to 1920 x 1080 (1080p)
  • HD15 port supports video resolutions up to 1920 x 1200, including 1080p
  • HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
  • Supports 36-bit Deep Color (12 bits per channel)
  • Ideal for Chromebooks, MacBooks, Microsoft Surface and laptops equipped with Mini DisplayPort or Thunderbolt 1 & 2 ports

Plug-and-Play Convenience
  • No software, drivers or external power supply required
  • Small enough to stow in laptop bag or briefcase
  • Passive adapter requires connected computer to have DP++ port

System Requirements

  • Passive adapter requires the connected computer to have a DP++ ( Displayport ++ ) port

Package Includes

  • P137-06N-HDV-4K Mini DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter, 6 in.
  • Owner’s manual
RoHS compliant

Specifications

OVERVIEW
UPC Code037332190833
Product TypeVideo Adapter
TechnologyDVI; HDMI; VGA/SVGA; DisplayPort
CONNECTIONS
Side A - Connector 1MINI DISPLAYPORT (MALE)
Side B - Connector 1DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side B - Connector 2HD15 (FEMALE)
Side B - Connector 3HDMI (FEMALE)
PHYSICAL
ColorBlack
Shipping Dimensions (hwd / in.)3.94 x 5.51 x 0.91
Shipping Weight (lbs.)0.16
STANDARDS & COMPLIANCE
Product ComplianceRoHS
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)3-year limited warranty
